Products

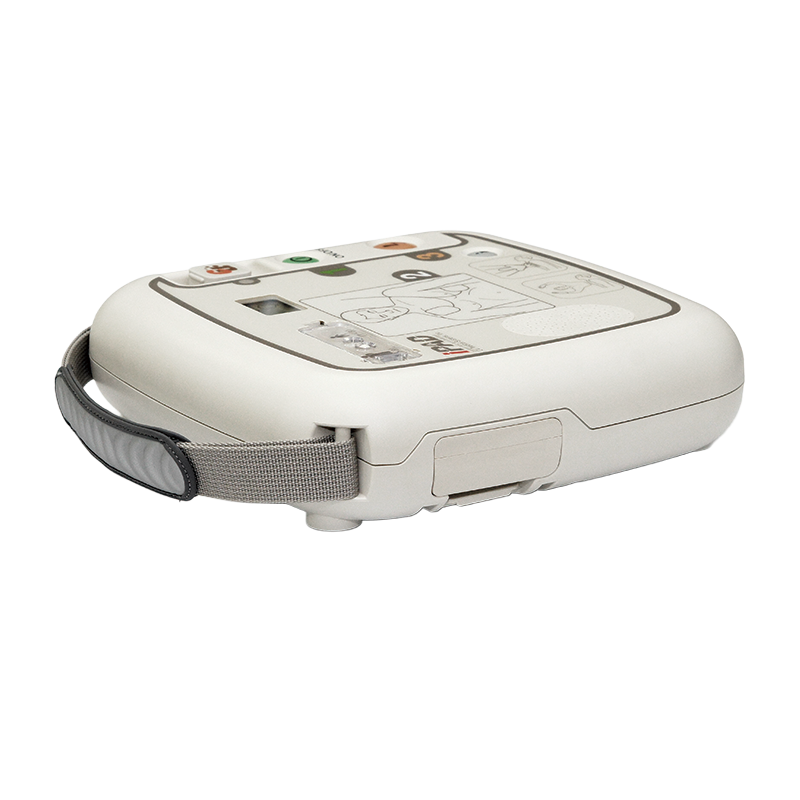

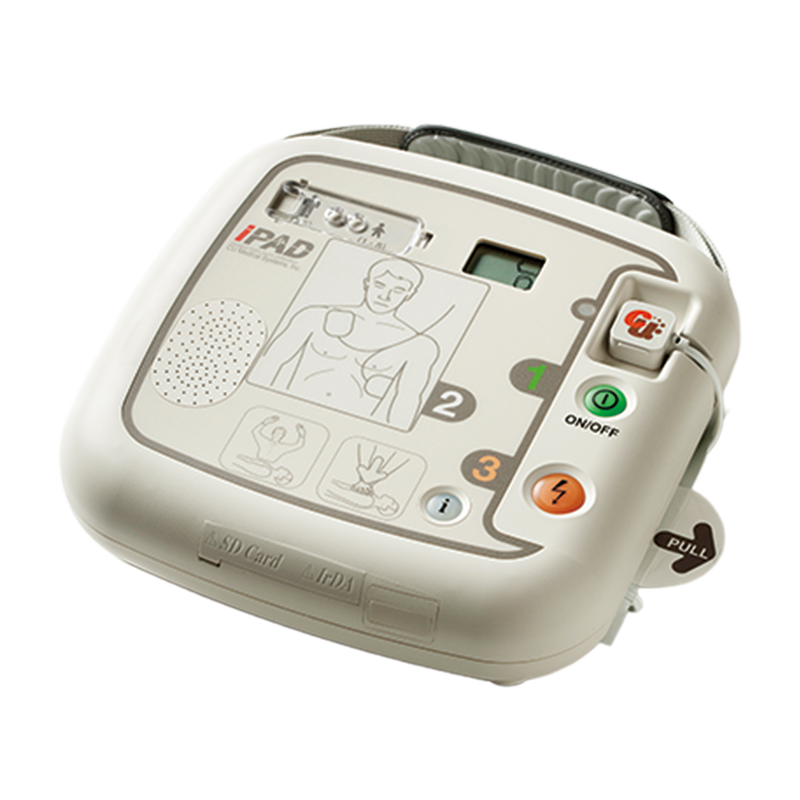

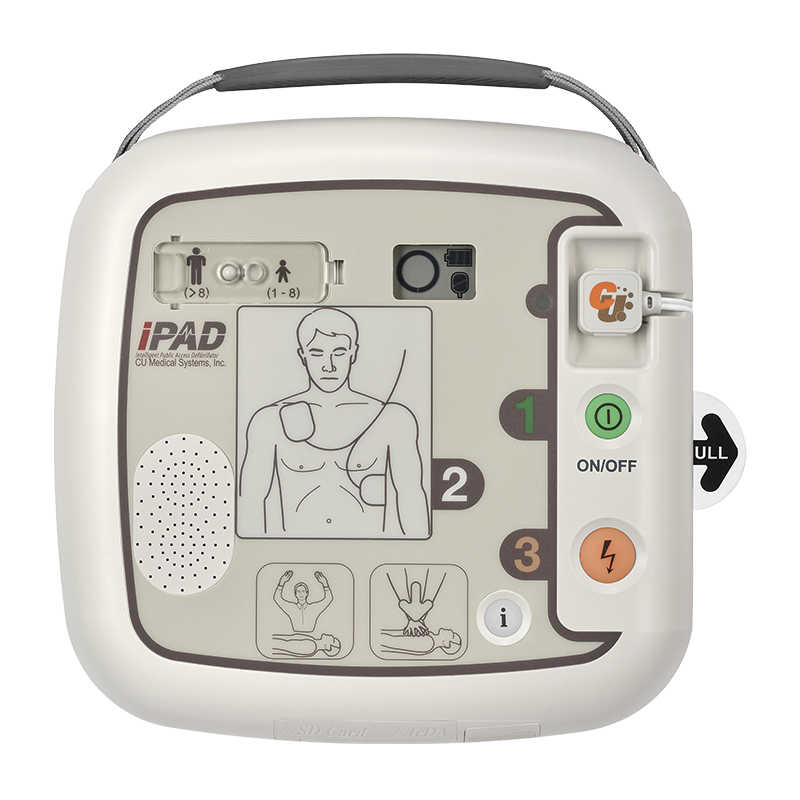

AED (Automated External Defibrillator)
iPAD CU-SP1
Key Features
• Automatic volume adjustment based on ambient noise conditions
• CPR guidance function
• e-cube Biphasic technology for effective defibrillation
• Shared pads for both adult and pediatric use

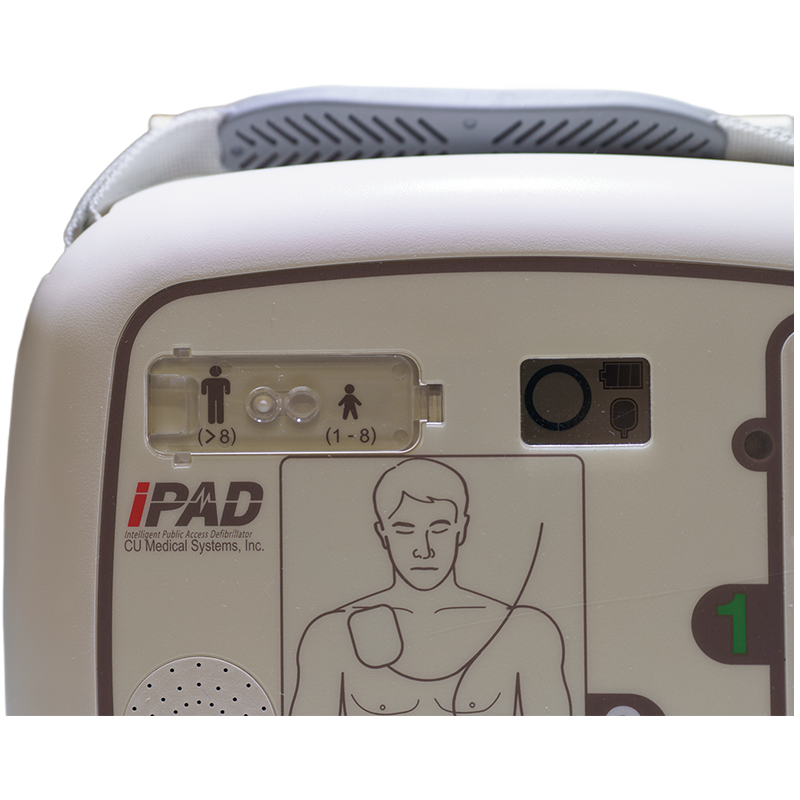

• LCD display of device status and consumable (battery, pad) expiration dates
• IP55-rated water and dust resistance

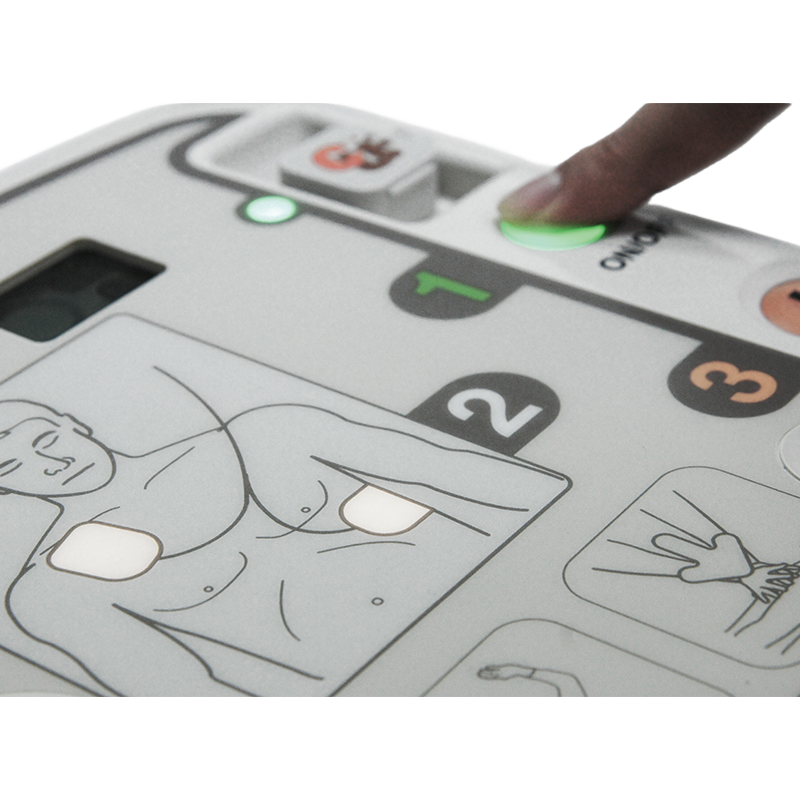

• LED guidance for pad attachment position (adult)
| Item | Details |
| Product Appearance | • Dimensions : 260 x 256 x 69.5 mm (W x L x H) • Weight : Approximately 2.4 kg (with disposable high-capacity battery installed) |
| Output | • Output Energy - Adult : 150J (±15%) 50Ω - Pediatric : 50J (±15%) 50Ω |
| Self-Diagnostic Test | • Automatic : Power-on and real-time self-diagnostic tests, performed daily, weekly, and monthly • Manual : Self-diagnostic test performed when the user inserts the battery pack |
| Control Device, Status Display, and CPR Detection Function | • Control Device : Power button, i-button, shock button, adult/pediatric selection switch • Status Display LCD : Displays device status, battery level, and pad status • CPR Detection Indicator : Indicates CPR performance and proper CPR execution through illumination and blinking |
| Battery | • Type : 12V DC, 4.2Ah LiMnO2 • Capacity : Capable of delivering at least 200 shocks on first use or operating continuously for 8 hours (at room temperature) |
| Pads | Adults/Pediatric Pads |
| Accessories | Main unit(1), defibrillation pads(1), battery(1), carrying case(1), user manual(1) |
